What happens when an overload or short circuit strikes your electrical system? Even a momentary disruption can mean halted operations, damaged equipment, and costly business delays. Electrical malfunctions are a leading cause of fires in commercial buildings, accounting for 6.2% of nonresidential building fires.
Miniature Circuit Breakers (MCBs) prevent these scenarios, offering precise and reliable protection for your electrical infrastructure. A miniature circuit breaker (MCB) is an automatic electrical switch that protects circuits from damage caused by overloads or short circuits. Unlike traditional fuses that require replacement after a fault, MCBs can be easily reset, making them more efficient and convenient for modern electrical systems.
In this blog, we’ll explain what MCBs are, how they work, and why they’re a must-have for businesses that value safety, efficiency, and uninterrupted productivity.
Characteristics of a Miniature Circuit Breaker (MCB)
Compact Design: MCBs are small and lightweight, ideal for residential, commercial, and industrial use.
Precise Protection: They quickly detect faults and interrupt the current flow to prevent damage to electrical systems.
Ease of Reset: Unlike fuses that need to be replaced after they trip, MCBs can be manually reset, minimizing downtime and reducing maintenance costs.
Reliability: MCBs offer consistent performance and are designed for long-term use in various environments.
Multiple Types: MCBs come in different ratings and trip curves (B, C, D), allowing businesses to select the right model based on the type of load and application.
What is Inside Miniature Circuit Breaker?
A Miniature Circuit Breaker (MCB) is an advanced device comprising several major components that provide electrical protection. Here’s a breakdown of what’s inside an MCB:
Thermal Element: The thermal element, often a bimetallic strip, detects overload conditions. When the current exceeds the rated capacity for an extended period, the strip heats up and bends. This bending trips the mechanism, disconnecting the circuit.
Magnetic Element: This component is designed to respond quickly to short circuits. It consists of an electromagnet that generates a magnetic field strong enough to pull a lever and trip the circuit immediately when a surge of current passes through.
Contacts: The contacts are metal pieces that complete the circuit when closed and interrupt it when the breaker trips. They play a critical role in the opening and closing of the MCB in response to faults.
Operating Mechanism: The operating mechanism includes a spring-loaded system that ensures the breaker trips when necessary. It stores the energy required to trip and reset the breaker after a fault is cleared.
Arc Extinguishing Chamber: An arc forms between the contacts when the circuit is broken. The arc extinguishing chamber uses various methods, such as air or a special arc-quenching material, to cool and suppress the arc, preventing further damage to the circuit.
Housing: The MCB is enclosed in a durable, insulating plastic or thermoplastic housing. This housing ensures safety by protecting the internal components from environmental factors and mechanical damage.
Terminal Connectors: The terminal connectors connect the MCB to the electrical system. These connectors allow the current to flow into the MCB and carry it to the circuit.
Each component works in unison to protect against electrical faults effectively, making MCBs an essential element in safeguarding electrical systems.
How Do MCBs Work?
Miniature Circuit Breakers detect abnormal conditions in an electrical circuit, such as overloads or short circuits, and interrupt the current flow to prevent potential damage. MCBs provide a reliable, quick-response solution for safeguarding electrical systems, reducing the risk of fires, equipment damage, and costly downtime.
Here’s a simplified explanation of the process:
Current Flow Monitoring: MCBs continuously monitor the electrical current passing through the circuit.
Detection of Faults
- Overload Protection: If the current exceeds the rated capacity for an extended period (overload), the MCB’s thermal mechanism (bimetallic strip) heats up and bends. This action trips the breaker and disconnects the circuit.
- Short Circuit Protection: In case of a short circuit (a sudden current surge), the MCB’s electromagnetic mechanism activates instantly, triggering the breaker to trip within milliseconds and stop the current flow.
Tripping Mechanism
- Thermal Mechanism: Works for overloads, where the current increase is gradual.
- Magnetic Mechanism: Responds quickly to the rapid surge in current caused by short circuits.
Circuit Disconnection: Once a fault is detected, the MCB trips, breaking the circuit and preventing further damage to wiring, connected devices, or the overall electrical system.
Resetting the MCB: After the fault is cleared, the MCB can be manually reset, allowing the circuit to resume normal operation.

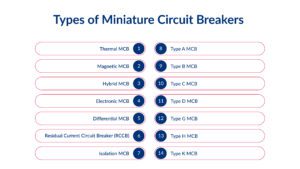

Types of Miniature Circuit Breakers
Each Miniature Circuit Breaker (MCB) type serves a specific function, offering tailored protection for different electrical systems and environments. Depending on the nature of the load, inrush currents, and the equipment involved, selecting the right MCB type is crucial for maintaining safety and efficiency in your electrical infrastructure.
Thermal MCB
A thermal MCB operates based on the temperature rise caused by the current flowing through the circuit. It uses a bimetallic strip that bends when heated, triggering the trip mechanism when the temperature exceeds a predetermined threshold.
This type of MCB is ideal for protecting circuits from prolonged overloads and is commonly used in general-purpose applications where sustained overcurrent conditions may occur.
Magnetic MCB
The magnetic MCB trips when the magnetic force generated by the current exceeds a set threshold. It uses a solenoid mechanism to detect this force. When the current flow creates a magnetic field strong enough, it pulls on the trip mechanism to disconnect the circuit. This type of MCB provides rapid protection against short-circuit conditions, ensuring minimal damage to the system.
Hybrid MCB
The hybrid MCB combines thermal and magnetic protection, providing a broader range of safety. It includes a bimetallic strip for thermal protection and a solenoid for magnetic protection, allowing it to trip based on either thermal overload or short-circuit conditions.
Hybrid MCBs offer a balanced circuit solution requiring protection from sustained overloads and rapid short-circuit events.
Electronic MCB
An electronic MCB utilizes advanced components to monitor the current in real time, offering faster and more precise tripping. These MCBs are highly sensitive, making them suitable for applications that demand fast response times to prevent damage. Electronic MCBs can provide more accurate fault detection and are often used in circuits with sensitive or complex equipment.
Differential MCB
Differential MCBs are used primarily in DC circuits and protect against earth faults and short circuits. These MCBs monitor the current flowing through the live and neutral wires and will trip if the difference between these currents exceeds a certain threshold, indicating an earth fault. Differential MCBs are crucial for preventing electrical shock hazards and are often found in DC-powered systems.
Residual Current Circuit Breaker (RCCB)
An RCCB protects against electric shocks and fires caused by earth faults. It monitors the current flowing through the live and neutral wires and trips when an imbalance is detected. This type of MCB is essential for safeguarding human lives by detecting leakage currents and preventing electrical hazards in systems prone to earth faults.
Isolation MCB
The isolation MCB is a switching device to isolate a circuit for maintenance or testing purposes. Unlike other MCBs, isolation MCBs do not have a trip mechanism for fault protection. Instead, they are designed to safely disconnect the circuit from the power supply, ensuring that maintenance can occur without risk of electrical shock or damage.
Type A MCB
The Type A MCB provides protection against over-current and is commonly used in circuits where the maximum expected current is known and relatively constant. It is suitable for applications such as lighting circuits, where the current flow is predictable and the need for protection against transient surges is minimal.
Type B MCB
The Type B MCB offers protection against both over-current and short circuits. It is suitable for circuits with variable loads, such as motor-driven equipment. Type B MCBs are ideal for environments where moderate inrush currents or fluctuating loads may occur.
Type C MCB
A Type C MCB protects against both over-current and earth fault currents. It is commonly used in circuits with a higher risk of earth fault currents, such as those with sensitive electronic equipment or direct current (DC) systems. Type C MCBs offer reliable protection when electrical faults arise unexpectedly.
Type D MCB
The Type D MCB is designed to offer protection against over-current and earth fault currents, with a higher tripping threshold than Type C MCBs. These breakers are best suited for circuits where fault currents are expected to be higher, such as in industrial or heavy machinery systems where large inrush currents may occur.
Type G MCB
A Type G MCB is commonly used in residual current devices (RCDs) to protect against over-current and earth fault currents. These MCBs are typically employed in electrical systems requiring surge protection and fault detection, ensuring equipment and personnel safety.
Type H MCB
The Type H MCB offers protection against over-current and earth fault currents in electrical systems powered by direct current (DC). These breakers are crucial in DC-powered environments where unique fault conditions can arise, ensuring that high-voltage DC systems and sensitive equipment are protected from damage.
Type K MCB
The Type K MCB protects electrical systems with high fault levels. It protects over-current and short circuits, making it suitable for circuits where fault levels are expected to be higher, such as in industrial applications with large motors or equipment that generates substantial inrush currents.
Why MCBs Are Essential for Your Electrical Systems?
MCBs offer many benefits that can save businesses time, money, and potential harm. Here’s why MCBs are indispensable:
Protection Against Overloads: MCBs automatically disconnect the circuit when current exceeds safe levels, preventing overheating, fires, or damage to electrical devices.
Rapid Response to Short Circuits: When a short circuit occurs, MCBs quickly trip the circuit, cutting off excessive current and protecting equipment from damage.
Safeguarding Sensitive Equipment: MCBs prevent fluctuations in current that could damage costly equipment, ensuring stable and safe power for machinery and devices.
Compliance with Regulations: MCBs help businesses meet local electrical codes and safety standards, ensuring compliance and reducing the risk of legal or insurance issues.
Cost-Effective Protection: MCBs are affordable, easy to install, and maintain. Their low cost offers significant savings by preventing costly repairs and equipment damage.
Improved System Reliability: MCBs contribute to the smooth functioning of electrical systems by preventing faults, reducing downtime, and enhancing overall operational efficiency.
Minimizing Human Risk: MCBs offer critical protection against electric shocks and fires, helping ensure the safety of workers and reducing the risk of workplace accidents.
Applications of MCBs
It’s essential to explore the diverse range of applications in which they are used to fully understand the versatility and critical role of Miniature Circuit Breakers (MCBs). From residential homes to complex industrial environments, MCBs provide essential protection and ensure the smooth operation of electrical systems.
| Application | |
| Residential Electrical Systems | MCBs protect home wiring and appliances from overloads and short circuits, ensuring household safety. |
| Industrial Control Panels | MCBs safeguard industrial machinery and control panels, preventing damage from electrical faults. |
| Commercial Buildings | MCBs are used in commercial buildings to protect lighting systems, HVAC systems, and power distribution circuits. |
| Motor Protection | MCBs protect motors from overloads and short circuits, ensuring they operate safely and efficiently. |
| Automation Systems | In automated systems, MCBs protect sensitive electronic equipment, reducing the risk of downtime due to electrical faults. |
| Renewable Energy Systems | MCBs are used in solar and wind energy installations to protect circuits from faults and ensure stable operation. |
| Data Centers | MCBs protect critical data center equipment from electrical issues, ensuring continuous service without interruptions. |
| Marine and Aerospace Systems | MCBs are used in ships and aircraft to protect electrical systems from damage caused by faults, ensuring safety in extreme conditions. |
Selecting the Right MCB for Your Needs
Selecting the right Miniature Circuit Breaker is vital for ensuring the reliability of your electrical systems. The choice of MCB depends on several factors, including the specific requirements of the electrical installation, load characteristics, and the nature of potential faults. Here’s a guide to help you make an informed decision when selecting an MCB:
- Determine the Load Type: Different MCBs are designed for different types of loads. Identify whether your load is resistive (like heating elements), inductive (like motors), or capacitive (such as in capacitor banks). The type of load will influence the MCB’s tripping characteristics.
- Choose the Correct Current Rating: Ensure the MCB has a current rating that matches the maximum expected current of the circuit. The current rating should be slightly higher than the normal operating current but low enough to protect in case of faults.
- Select the Appropriate Trip Curve: The trip curve determines the time it takes for the MCB to trip under different overload conditions. Choose from the following types based on your application:
- Type B: Suitable for residential applications and circuits with relatively constant loads.
- Type C: Ideal for circuits with moderate inrush currents, like lighting and heating systems.
- Type D: Best for circuits with high inrush currents, such as motors and transformers.
- Consider Voltage Rating: Make sure the MCB is rated for the voltage of your electrical system. MCBs have different voltage ratings for varying industrial, commercial, and residential requirements.
- Understand the Fault Protection Needed: If you’re dealing with circuits that require protection against earth faults or leakage currents, consider an MCB with integrated residual current protection (RCCB). This will provide additional safety by detecting imbalances in current flow and cutting off the power to prevent electrical shocks.
- Check for Compliance with Standards: Ensure the MCB complies with relevant national and international standards (e.g., IEC 60898). This ensures quality, reliability, and safety.
- Consider Space and Panel Requirements: MCBs come in different sizes and configurations, so ensure that the selected MCB fits in your electrical panel and leaves room for future expansion if needed.
UpgradeYour Electrical Safety with LSElectric’s MCBs
As industries innovate, LSElectric America Inc. leads with reliable solutions that redefine panel control, automation, and power distribution.
Our products, including MCBs, circuit breakers, and more, provide reliable protection for your electrical systems, ensuring smooth operations and minimizing downtime.
If you’re ready to improve the protection and performance of your electrical systems, contact us today. Explore our full range of products for guidance on selecting the right MCB for your needs.
Our solutions include:
Take your operations to the next level.
FAQs
- What is the difference between an MCB and an MCCB?
MCBs (Miniature Circuit Breakers) are designed for low current protection and are typically used in residential or small commercial applications. On the other hand, MCCBs (Molded Case Circuit Breakers) are designed for higher current protection and are usually used in industrial or commercial applications with higher load requirements. - Can MCBs be reset once tripped?
Yes, MCBs are designed to be reset after tripping. After an overload or short circuit, turn the MCB switch back to the “on” position to reset it. However, if the breaker trips repeatedly, an underlying electrical issue may need to be addressed. - What causes an MCB to trip?
MCBs trip when they detect an overload or short circuit. Overloading occurs when the current flowing through the circuit exceeds the MCB’s rated capacity. In contrast, short circuits occur when there’s a direct connection between live and neutral conductors, creating a surge of current. - How often should MCBs be tested?
It is advisable to test MCBs periodically to ensure they are functioning properly. This can be done by manually tripping and resetting the breaker. Regular testing should be part of routine maintenance, ideally once every 6 to 12 months, depending on usage. - Are MCBs used in both AC and DC circuits?
Yes, specific types of MCBs are designed for both AC (alternating current) and DC (direct current) circuits. However, DC MCBs often require specialized designs due to the constant direction of current flow, which presents different challenges compared to AC circuits. - 6. Can an MCB be used to switch applications?While MCBs can be used for switching purposes in some low-voltage circuits, they are primarily designed for protection. Switches or other devices designed specifically for that purpose are often preferred for switching tasks.
