Digital Protection
MCU-based control enables real-time data processing. High-precision detection supports reliable motor protection.

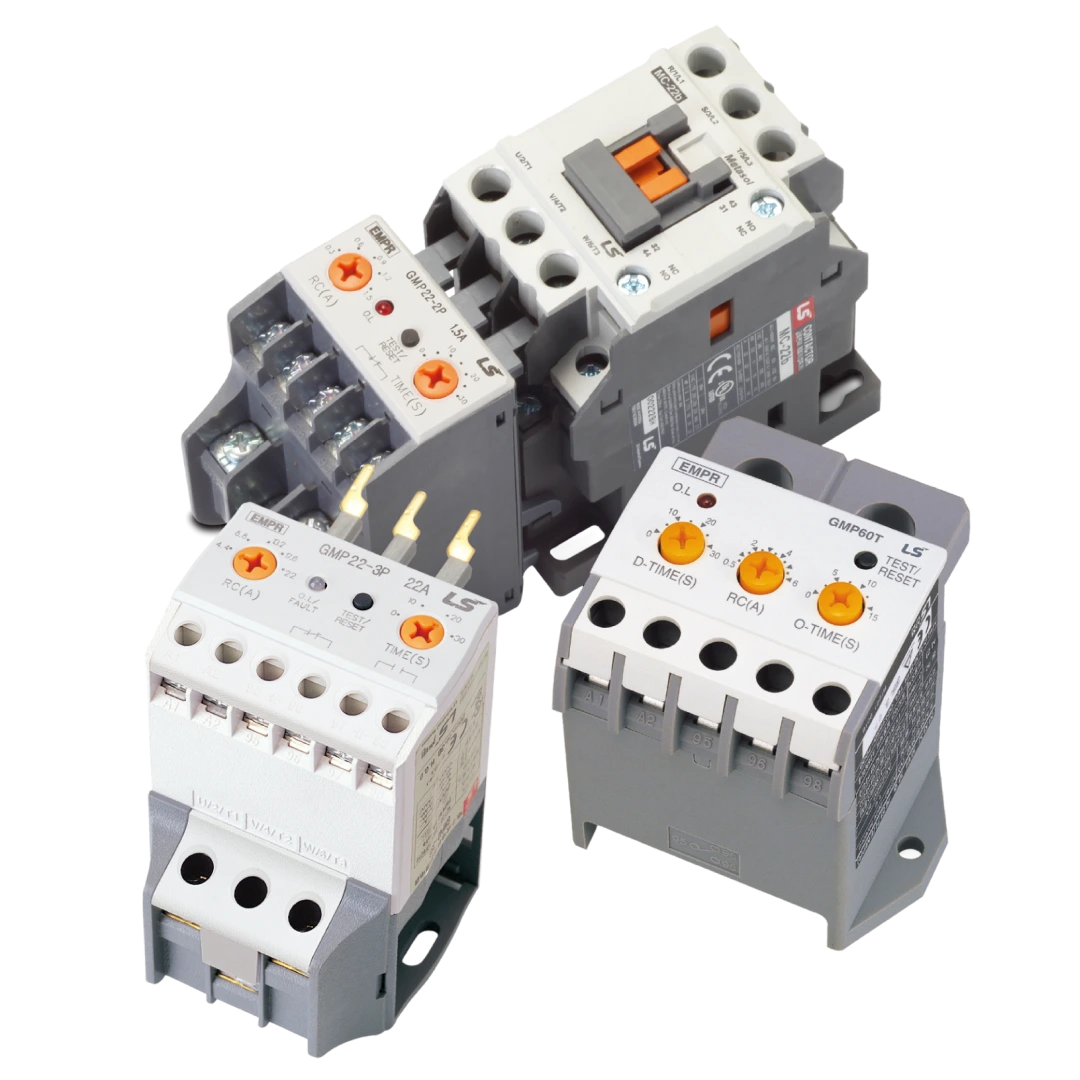

GMP
The GMP Series is an electronic motor protection solution that provides intelligent fault detection and reliable protection performance. Using MCU-based digital control technology, the products support real-time data processing and high-precision protection. Multiple protection functions, with definite-time and inverse-time operating characteristics, allow flexible application across different motor capacities and load conditions. LED fault indication and multiple installation methods improve maintenance efficiency and support reliable motor protection in industrial control applications.
- Current Setting Range
- 0.3 – 80 A
- Protection Function
- Overcurrent / Phase Failure / Locked Rotor / Phase Unbalance / Reverse Phase
- Operating Time Characteristic
- Inverse Time / Definite Time
Key Features
02
Multiple Protection Functions
Supports protection against overcurrent, phase loss, locked rotor, phase unbalance, and reverse phase. Helps prevent equipment damage caused by abnormal motor conditions.
03
Fast Diagnostics
LED indicator lights help identify the cause of faults quickly. Last-fault memory improves maintenance efficiency.
04
Flexible Installations
Available with multiple connection types, including direct-mount, terminal, and through-type configurations. Screw and DIN rail mounting support easy control panel installation.
Lineup
Product Type | Electronic Motor Protection Relay |
|---|---|
Current Setting Range | 0.3 - 80 A |
Connection Type | Pin / Screw / Tunnel |
CT Type | 2CT / 3CT |
Protection Function | Overcurrent / Locked Rotor / Phase Failure / Phase Unbalance / Reverse Phase / Ground Fault |
Operating Time | Inverse Time / Definite Time |
Control Voltage | AC 100 - 260 V |
Display Function | LED Trip Indication / 7-Segment Display for selected models |
Mounting Type | MC Direct Coupling / Screw Mounting / DIN Rail Mounting |
Downloads
[GMP]
- [GMP]_EN_C15042-04-202409.pdf (4.70MB)
[EMPR_GMP] User Manual EN
- [GMP]_Manual_20240820.zip (21.34MB)
GMP22, GMP40, GMP60T, GMP80
- E206826-Vol1-Sec2.pdf
[EMPR_GMP] CAD_2D EN
- [GMP]_CAD_EN_202306.zip (4.36MB)
