01
Integrated Metering
Provides current, voltage, energy, and power factor measurements. Supports comprehensive management of motor operating conditions and power usage information.
MMP

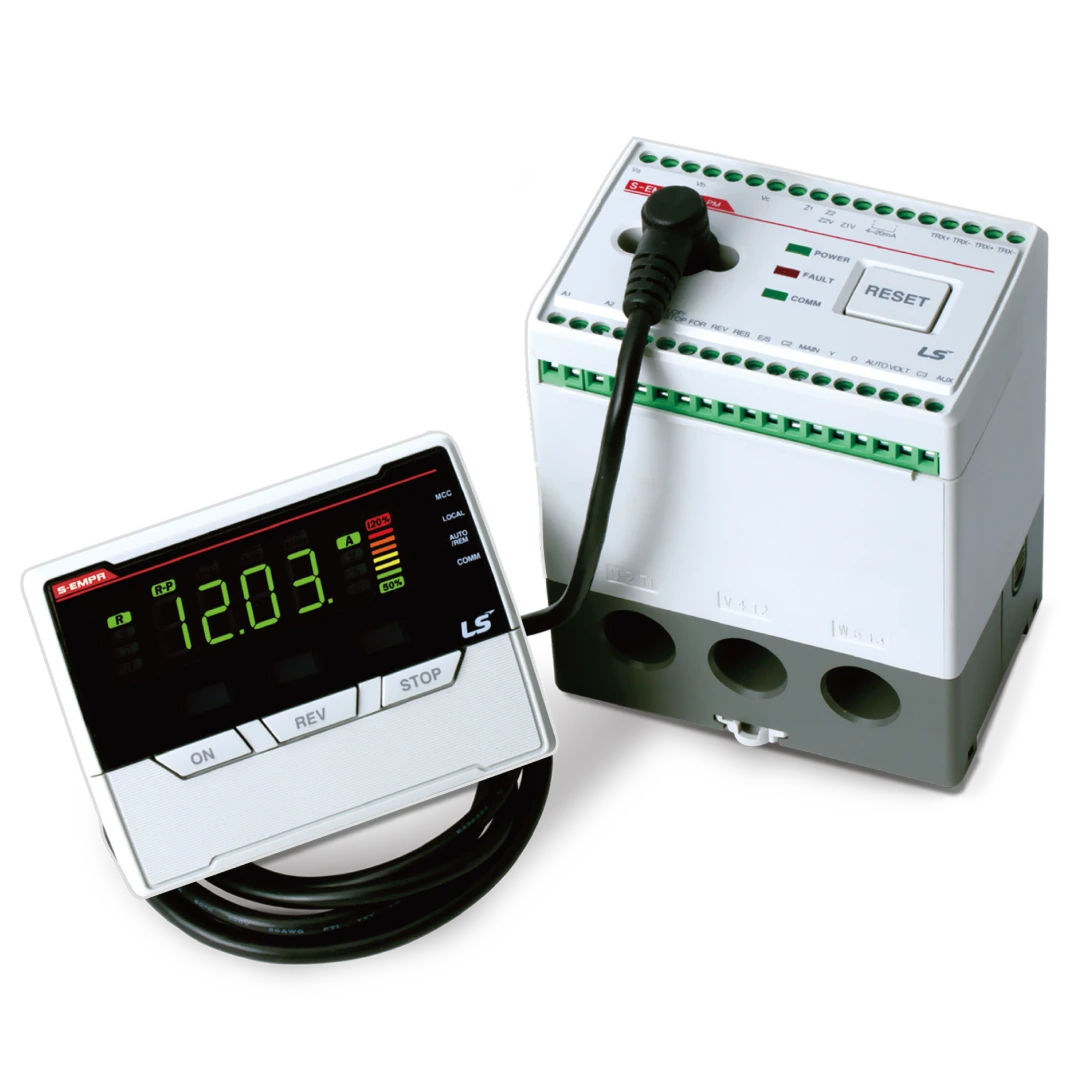

The MMP Series is a smart motor protection solution that integrates protection, metering, control, and communication functions for industrial motors. With measurement of current, voltage, energy, power factor, and harmonics, the devices support detailed monitoring of motor operating conditions. Multiple protection elements and motor starting methods allow flexible application across various equipment requirements. Instantaneous power failure compensation, restart functions, MODBUS communication, and 4 – 20 mA output support smart motor control panel applications.
- Rated Current
- 0.5 – 100 A
- Measurement Function
- Current / Voltage / Power and Energy / Power Factor / Harmonics Insulation Resistance / Motor Temperature
- Motor Starting Type
- Full Voltage / Y-D / Reversible / Reactor / Inverter
Key Features
02
Power Quality
Supports harmonic measurement from the 1st to 16th order. Helps improve equipment operating stability through power quality analysis.
03
Starting Control
Supports direct-on-line, Y-D, reversing, reactor, and inverter starting. Allows various motor control circuits to be configured with a single device.
04
Smart Connectivity
Supports Modbus communication and 4 – 20 mA output. Enables remote monitoring and control environments based on PLC and DCS systems.
Lineup
Product Type | Smart Electronic Motor Protection Relay |
|---|---|
Rated Current | 0.5 - 10 A / 5 - 100 A |
Connection Type | Tunnel Type (Passing through CT Holes) |
Operating Time | Thermal Inverse Time / Inverse Time / Definite Time |
Measurement Function | Current / Voltage / Power and Energy / Power Factor / Harmonics / Insulation Resistance / Motor Temperature |
Motor Starting Type | Full Voltage / Y-D / Reversible / Reactor / Inverter |
Communication and Output | RS485 MODBUS / 4 - 20 mA DC Output |
Display | 4 Digit, 7-Segment, LED |
Control Power | AC 110 V / AC 220 V, 50/60 Hz |
Downloads
[MMP]
- [MMP]_EN_C15012-03-202409.pdf (3.08MB)
[EMPR_MMP] User Manual EN
- [MMP]_Manual_20240820.zip (93.39MB)
MMP-CB,CM,PB,PM,SB or SM ,followed by 10A or 100A (S EMPR)
- E206826-Vol1-Sec15.pdf
MMP-HMI7 DC24V, IHM32-DC24V
- E124950-V1_Cert_20241211.pdf
[EMPR_MMP] MMP Modbus MAP
- 6-1.MMP MODBUS ADDRESS #01~#30 (En)_191022.pdf (284.36KB)
