01
Real-Time Monitoring
High-precision measurement enables real-time monitoring of motor operating conditions. A remote display improves monitoring visibility from the front of the control panel.

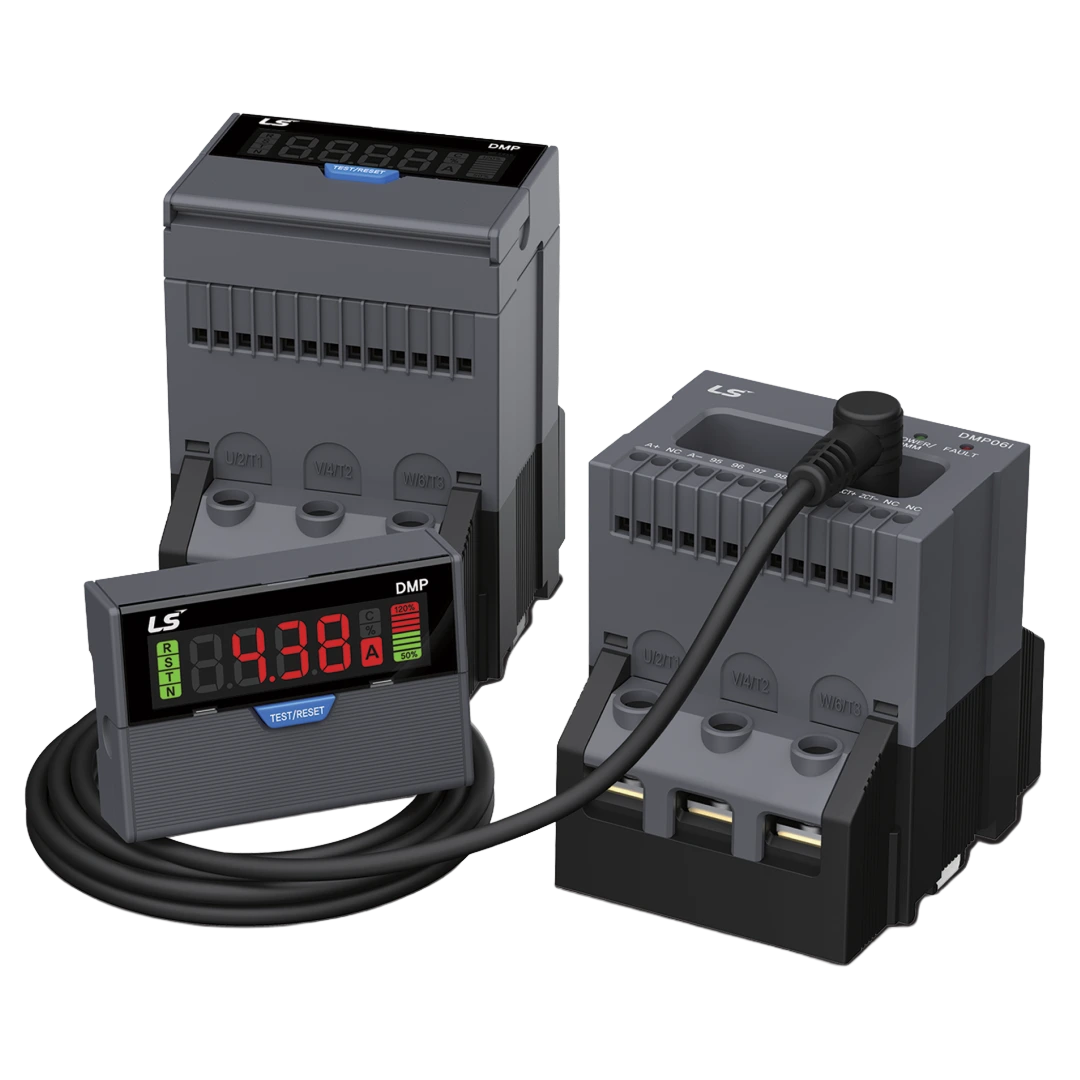

DMPi
The DMPi Series is an intelligent digital motor protection solution that integrates protection, monitoring, and diagnostic functions for industrial motors. With real-time data processing and high-precision measurement, the products provide accurate monitoring of motor operating conditions and reliable response to various abnormal conditions. A remote display, fault history storage, operating time management, MODBUS communication, and 4 – 20 mA output support smart maintenance environments.
- Rated Current
- 0.5 – 65 A
- Protection Function
- Overcurrent / Stall / Phase Failure / Phase Unbalance / Reverse Phase / Under Current / Ground Fault / Instance
- Communication and Output
- RS485 Modbus / 4 – 20 mA DC output
Key Features
02
Diagnostic Management
Stores fault causes and occurrence times. Trip history supports cause analysis and fast recovery.
03
Smart Connectivity
Supports RS485/Modbus communication or 4 – 20 mA output options. Connects with upper-level monitoring systems to support smart control environments.
04
Preventive Maintenance
Provides total operating time and operating time setting functions. Helps manage equipment inspection intervals and improve maintenance efficiency.
Lineup
Product Type | Intelligent Digital Motor Protection Relay |
|---|---|
Rated Current | 0.5 - 6 A / 5 - 65 A |
Connection Type | Terminal / Penetrated |
Protection Function | Overcurrent / Stall / Phase Failure / Phase Unbalance / Reverse Phase / Under Current / Ground Fault / Instance |
Operating Time | Thermal Inverse Time / Inverse Time / Definite Time |
Display | 4 Digit, 7-Segment |
Control Voltage | AC/DC 85 - 260 V, AC/DC 24 V |
Communication & Output | RS485 MODBUS / 4 - 20 mA DC Output |
Reset Method | Manual / Automatic / Electrical Reset |
Mounting Type | Separated Display / 35 mm DIN Rail / Screw Mounting |
Downloads
[DMPi]
- [DMPi]_EN_C15022-05-202503.pdf (3.50MB)
[EMPR_DMPi] User Manual EN
- DMPi MANUAL.zip (10.29MB)
DMP?06i or 65i, followed by -S or ?T, maybe followed by Z or B, maybe followed by I, maybe followed by M or A
- E206826-Vol1-Sec17.pdf
DMP06i, DMP65i
- [ABS]22-2207554-PDA_DMP06i_cert.pdf
[EMPR_DMPi] MODBUS 통신자료
- 4-1.DMPi MODBUS ADDRESS MAP(En)_20180109.pdf (431.70KB)
